Master Operation

 “Group one or more saved searches”

 “Manual polling”

Create a search for peer-to-peer Host computers

By default, the Master searches only your local network segment when it starts to poll for

Host computers. To search for Host computers on a different network segment, a named

search must be created.

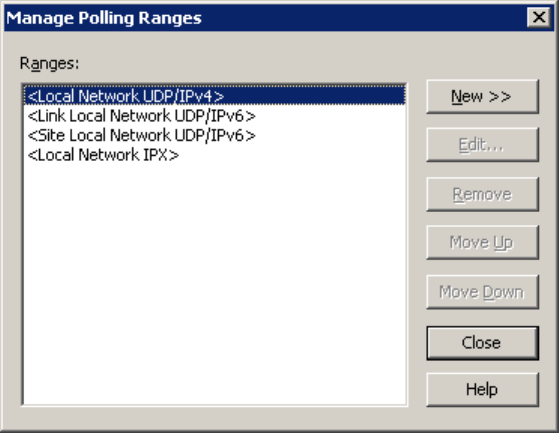

To create, edit, or remove a search, click Manage in the Peer-to-Peer Hosts tab. The

Manage Polling Ranges window appears.

The Ranges list displays any searches that you have specified and saved, as well as the

default local network searches. The searches that can be saved include a single address,

a range of addresses, or a grouping of previously saved searches.

Four entries (<Local Network UDP/IPv4>, <Link Local Network UDP/IPv6>, <Site Local

Network UDP/IPv6>, and <Local Network IPX>) represent the local networks to which you

are connected. You cannot edit or remove any of them. You can edit or remove any other

searches listed:

 Click Edit to change the definition of a selected search.

 Click Remove to delete a selected search from the list.

A new search can be created using either a custom polling range or a custom group by

clicking New>>.

Create a UDP/IP search

Use UDP/IP to poll for Host computers using one of the following techniques:

Create a UDP/IP broadcast to IPv4 address

To locate a Host computer by polling a specific IPv4 address, follow these steps:
