CHAPTER 5: PLACE & ROUTE
OPTIMIZING THE FIT
104 ■ INTRODUCTION TO QUARTUS II ALTERA CORPORATION

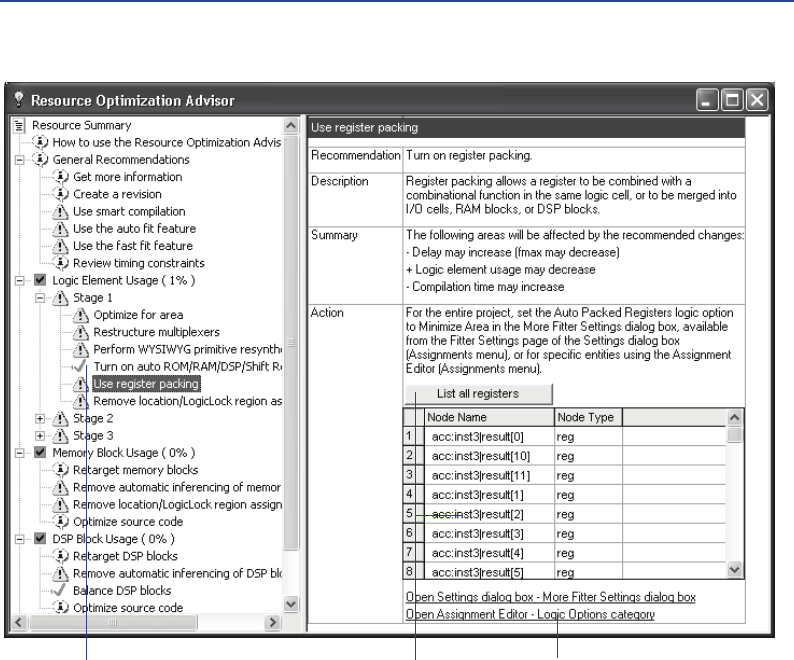

Figure 7. Resource Optimization Advisor Recommendation Page
If the recommended action involves changing a Quartus II setting, the right
pane of the Resource Optimization Advisor may include a link to the
appropriate dialog box, page, or feature in the Quartus II software or may
include a button that provides more information about the design. It may
also include links to Quartus II Help or other documentation on the Altera
web site.
If you want to print the current recommendation, you can click in the right
pane and choose Print Recommendation (right button pop-up menu); or, if
you want to print all recommendations, you can click in the left pane and
choose Print All Recommendations (right button pop-up menu).
Hierarchical list of recommendations—
icons indicate potential problem areas
Clicking a link in the
recommendations page opens the
appropriate dialog box, page, or
feature.
Some recommendations include
buttons that will provide more
information about the design,
such as this list.
